Maximum Performance for Industrial Metal Cutting

Precision Circular Saw Blades for Steel, Stainless Steel, Titanium and Tube Cutting

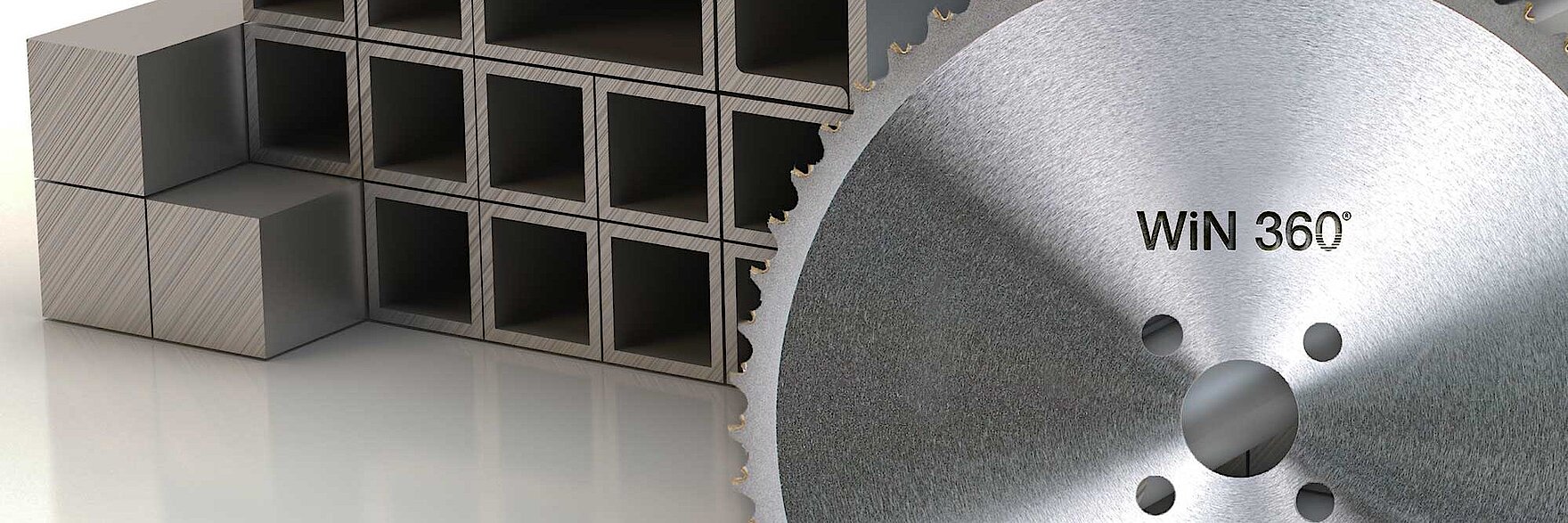

WIKUS WiN 360® Series

WIKUS precision circular saw blades deliver accurate, efficient, and cost-effective metal cutting solutions for industrial manufacturing and metalworking applications. With the WiN 360® portfolio, WIKUS offers high-performance circular saw blades designed for a wide range of materials, material shapes, and production requirements.

The INOX, CERMET, PVD, and TUBE product lines are specifically engineered for dedicated sawing applications, including stainless steel, solid materials, tubes, and profiles. They support manufacturers in achieving superior cutting performance through excellent cut quality, high process reliability, long blade life, and reduced operating costs.

Featuring a comprehensive selection of cutting materials, blade dimensions, and tooth geometries, the WiN 360® portfolio provides the optimal circular saw blade solution for virtually every metal sawing application. Whether for high-volume production, demanding materials, or specialized cutting requirements, WIKUS helps maximize productivity and efficiency throughout the entire sawing process.

Additional blade dimensions and customized executions are available upon request.



Your Benefits

Consistent Cutting Precision

High cutting quality and dimensional accuracy

Superior Wear Resistance

Long blade life thanks to premium cutting materials and specialized coatings

Maximum Productivity

High productivity and process reliability

Broad Application Coverage

Comprehensive range for solid materials, tubes, and profiles

Optimized Cutting Parameters

Support with product selection and cutting parameters

Technical Support

Technical service and support from WIKUS experts

WiN 360® Series - Product Overview

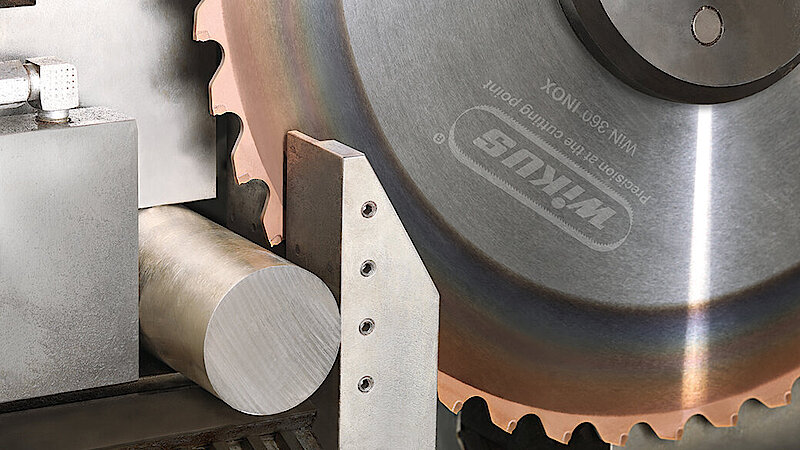

WiN 360® INOX

Optimized Finish for Stainless Steel, Solid Bars and Pipes.

  • Hook tooth
  • Constant tooth pitch
  • Diameter: 250 - 460 mm

Request a Quote

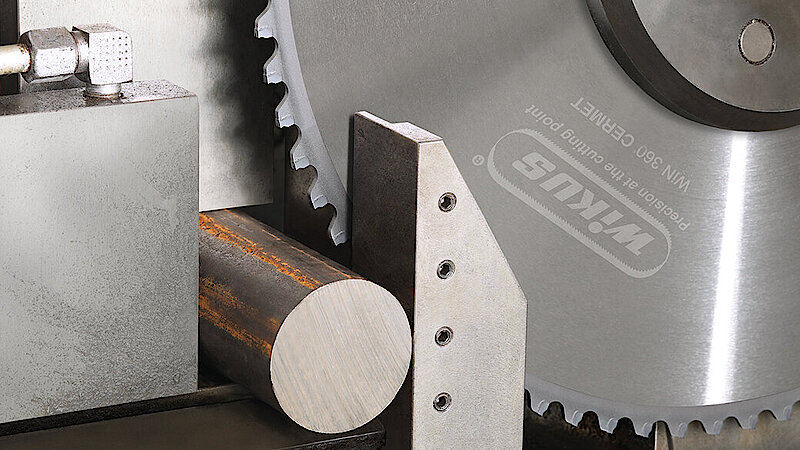

WiN 360® CERMET

Designed for Low- and Medium-Carbon Steel, Solid Bars.

  • Hook tooth
  • Constant tooth pitch
  • Diameter: 250 - 460 mm

Request a Quote

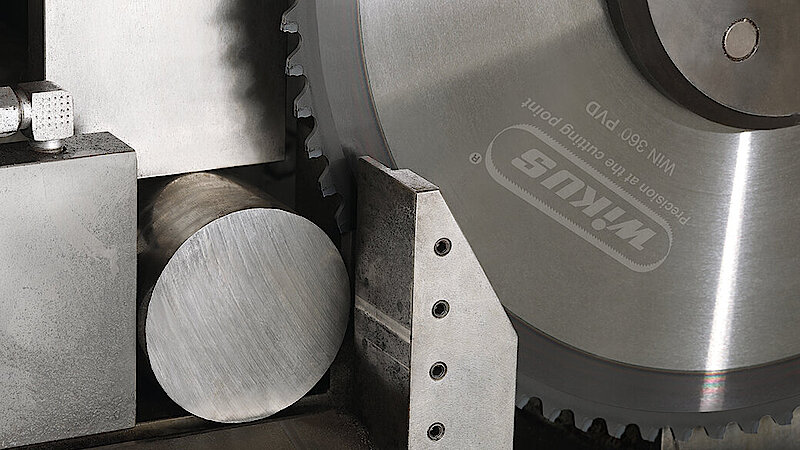

WiN 360® PVD

Ideal for Medium- and High-Carbon Steel, Solid Bars.

  • Hook tooth
  • Constant tooth pitch
  • Diameter: 250 - 460 mm

Request a Quote

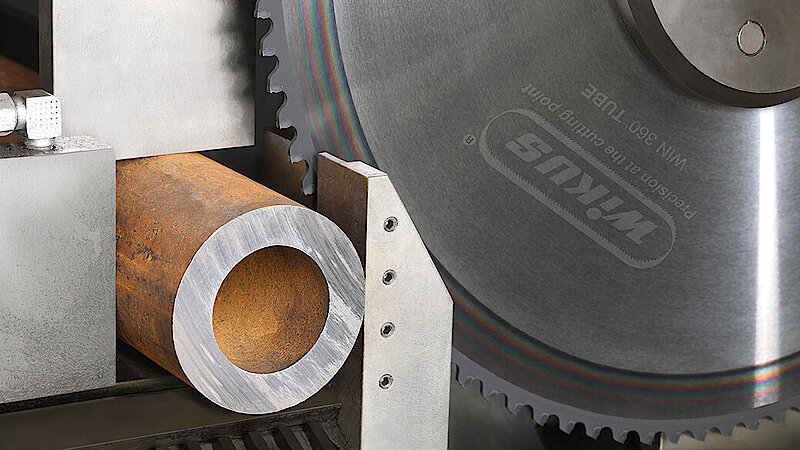

WiN 360® TUBE

Specifically developed for Steel Tube Cutting Applications.

  • Hook tooth
  • Constant tooth pitch
  • Diameter: 250 - 460 mm

Request a Quote

Diameter (D)Width (S1)Thickness (S2)Bore (d)Number of teeth
mmmmmmmmconstant
250,002,001,75 32 / 40 54, 60, 72, 80, 100
285,002,001,75 32 / 40 54, 60, 72, 80, 100, 110, 120, 140
315,002,502,25 32 / 40 / 50 48, 50, 54, 60, 72, 80, 90, 100, 110, 120
350,002,602,25 32 / 40 / 50 60, 70, 76, 80, 90, 100, 120, 130, 144, 150
350,002,702,50 32 / 40 / 50 60, 70, 76, 80, 90, 100, 120, 130, 144, 150
350,000,000,00 32 / 40 / 50 60, 70, 76, 80, 90, 100, 120, 130, 144, 150
360,002,602,25 40 / 50 40, 50, 60, 72, 80, 90, 100, 110, 120
400,002,602,25 40 / 50 60, 80, 100, 120, 140, 150, 160
420,002,702,25 40 / 50 50, 60, 72, 80, 90, 100, 120, 140
425,002,702,25 40 / 50 50, 60, 72, 80, 90, 100, 120, 140
460,002,702,25 40 / 50 40, 50, 60, 70, 72, 80, 90, 100, 120, 140, 150, 160, 180
CERMET Precision Circular Saw Blade for Steel

Please always specify the required bore diameters when ordering circular saw blades. Additional executions are available on request.

WIKUS Circular Saw Blades are high performance tools. The safety instructions are strictly to be followed when using the blades.

  • Be careful, the optimal cutting speed may not comply with the maximum allowed cutting values of the blade and the cross related machine speed values.
  • Select only saw blades that are suitable for material being machined and machine being operated.
  • Only qualified and experienced persons who are familiar with the circular saw blades are permitted to use them.
  • Proceed with extreme care when unpacking, packing and handling the circular saw blades (e.g. installing it in the machine). There is a risk of injury from extremely sharp cutting edges!
  • When handling the circular saw blades, wearing safety gloves provides a more secure hold and further reduces the risk of injury.
  • Observe the safety warnings for your machine. Comply with the safety regulations that apply in your country.
  • Circular saw blades with cracked bodies must be replaced. Repair is not permitted.
  • Circular saw blades with a combination design (saw teeth soldered in) with saw tooth dimensions smaller than 2 mm may no longer be used.
  • Do not use tools with visible cracks or blunt or damaged cutting edges.
  • When sawing, ensure that the machine’s feed direction is the same as the tool’s cutting direction.
  • Wear suitable personal protective equipment:
    - Ear protection
    - protective eye goggles
    - dust mask for work that generates dust
    - protective gloves for working with rough materials and for changing tools


Installation and mounting

  • Circular Saw Blades must be clamped in such a way that they cannot come loose during operation.
  • When assembling the circular saw blades, it must be ensured that the clamping takes place on the tool hub or the clamping surface of the tool, and that the cutting edges do not come into contact with one another or the fixed clamps.
  • Retaining screws and nuts must be tightened using suitable keys, etc. and with the torque specified by the manufacturer.
  • The clamping surfaces must be cleaned to remove contamination, grease, oil and water.
  • Clamping screws must be tightened according to the manufacturer’s operating instructions.
  • Only securely installed rings, e.g. rings that have been pressed in or those that are held in position by an adhesive bond, may be used to adjust the hole diameter of circular saw blades to the spindle diameter of the machine. The use of loose rings is not permitted.

Environment

  • Do not dispose accessories in the household waste. Recycle accessories and packaging. Observe applicable national regulations.
Download PDF

Flyer WiN 360® Series

Discover the complete WiN 360® range at a glance – comprehensive technical information, key product advantages, and application areas in one compact document.

Download the latest product flyer in PDF format.
